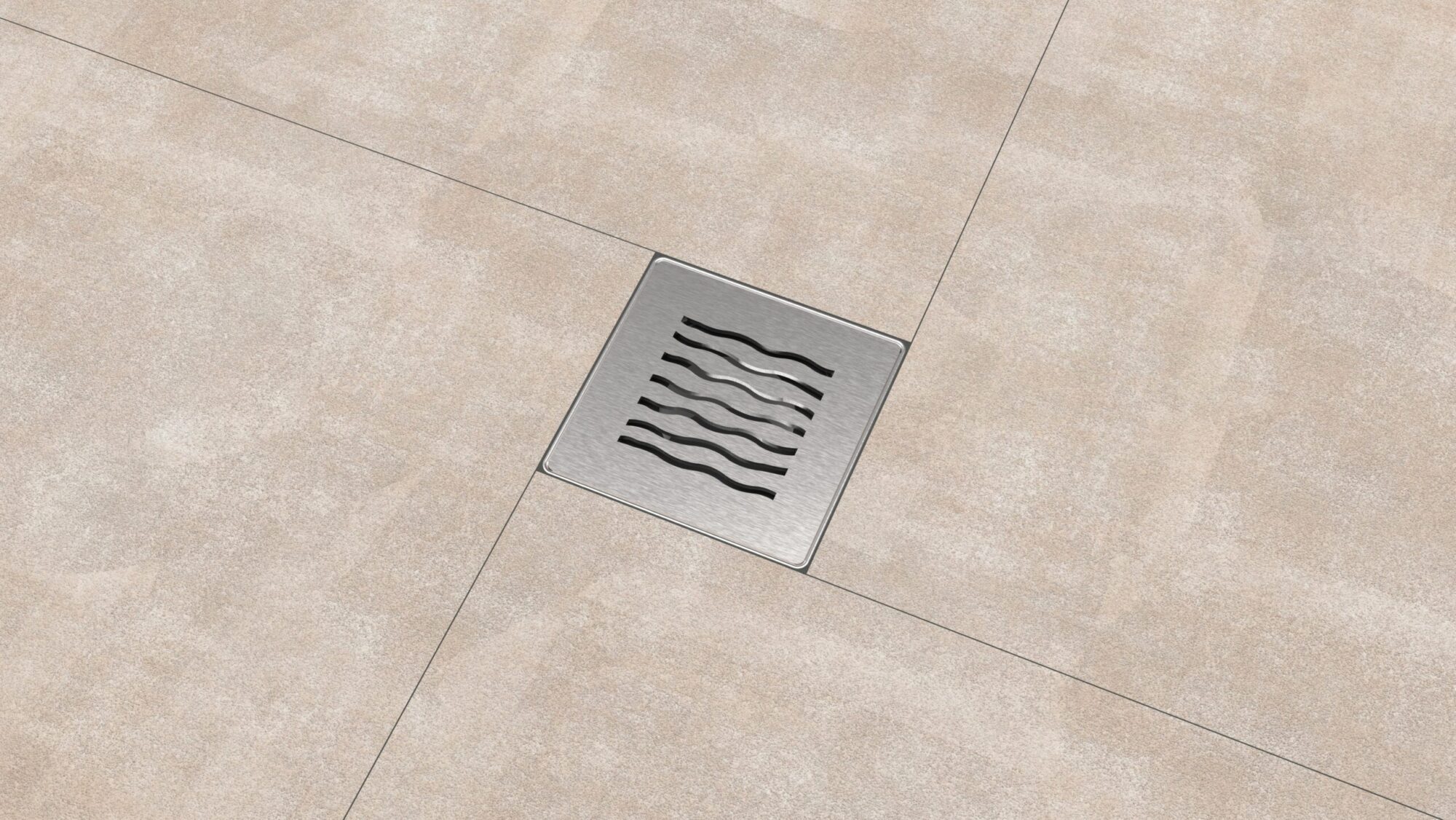

Aikit Evo Series System

The Akit Series Evo drainage solution incorporates waterproofing to the drain to provide waterproof protection for areas exposed to water and with evacuation on the floor such as built-in shower trays, adapted bathrooms, collective showers in changing rooms, galleries and laundry rooms…

The Akit Series Evo drainage solution incorporates waterproofing to the drain to provide waterproof protection for areas exposed to water and with evacuation on the floor such as built-in shower trays, adapted bathrooms, collective showers in changing rooms, galleries and laundry rooms…

It is made up of a low-profile siphon drain, a piece of WATER-STOP waterproof sheet attached and sealed at the factory to a special adapter for connection to the drain, and a stainless steel grid with ABS bowl.

Kit Content

  • EVO grille
  • Hair picker
  • WATER-STOP foil
  • Bowl
  • Adapter
  • Ruber Crown
  • Ruber siphon
  • Reducer 40/50 mm

Accessories included in the kit:

  • 2 W-S DEX for greater safety in waterproofing joints.
  • 2 W-S TUB for total waterproofing when installing the drain pipe..
  • 1 Installation cover to prevent leaks in the RUBER siphon.



<

<

downloads

  • Data sheet

TECHNICAL DATA SHEET EVOLUX SYSTEM

  • Blueprints

GRID PLUS 11.6 RUBBER STOP

GRID PLUS 15×30 RUBBER STOP

SMOOTH GRID 11.6X11.6 RUBBER STOPPER

SMOOTH GRILLE 15X30 RUBBER STOP



  • Warranty, insurance and declaration of conformity

GUARANTEE MODEL

DECLARATION OF CONFORMITY EVOLUX

CERT ENGLISH 032739229 stil guru 2021

IMAGEN GARANTIA GURU@4x

Adjustable and adjustable siphon body in specific formats

Manufactured reducing the environmental footprint

Suitable for wheelchairs

Minimum assured height

10 year warranty

Strong and easy installation

100% waterproof

Drainage capacity according to EN 1253 standard

Easy cleaning thanks to the integrated hair catcher
