¿Qué es la lámina contra el ruido de impacto G-SOUND?

G-SOUND es una lámina acústica antiimpacto diseñada para reducir la transmisión del ruido de impacto en suelos revestidos con cerámica. Es una solución eficaz para mejorar el aislamiento acústico frente a pisadas, golpes y vibraciones.

¿Para qué sirve una lámina contra el ruido de impacto?

Sirve para reducir el ruido que se transmite a través del suelo por impactos como pasos, arrastre de muebles o golpes. Este tipo de lámina ayuda a mejorar el confort acústico de la vivienda o del espacio construido.

¿Cuánto ruido puede reducir G-SOUND?

G-SOUND está diseñada para reducir el ruido de impacto entre 15 dB y 21 dB, dependiendo del sistema de instalación y de la solución utilizada.

¿Dónde se instala G-SOUND?

G-SOUND se instala bajo revestimientos cerámicos para mejorar el aislamiento acústico al ruido de impacto. Puede utilizarse en interior y exterior, aportando además desacoplamiento y protección impermeable.

¿G-SOUND solo sirve para aislamiento acústico?

No. Además de mejorar el aislamiento acústico al ruido de impacto, G-SOUND también aporta funciones de desacoplamiento y protección impermeable, lo que la convierte en una solución técnica muy completa.

¿Se puede instalar G-SOUND sin hacer una gran recrecida?

Sí. Una de sus ventajas es que permite reducir el ruido de impacto con un espesor total de instalación inferior a 1 cm, evitando soluciones más gruesas y pesadas.

¿Qué ventajas tiene G-SOUND frente a sistemas acústicos más gruesos?

G-SOUND permite ahorrar espacio, reducir el espesor total de la solución y evitar la necesidad de una gruesa capa de mortero. Esto facilita la instalación y mejora la eficiencia en obra.

¿De qué está compuesta la membrana acústica G-SOUND?

G-SOUND está compuesta por una lámina de polipropileno con un geotextil de polipropileno integrado en la cara inferior y un velo de fibras no tejidas en la cara superior, formando una estructura multicapa.

¿G-SOUND es adecuada para suelos cerámicos?

Sí. Su uso está orientado a mejorar el aislamiento acústico al sonido de impacto transmitido por revestimientos cerámicos, por lo que es una solución especialmente adecuada para este tipo de pavimentos.

¿Por qué elegir G-SOUND para reducir el ruido de pisadas?

Porque es una solución ligera, técnica y eficaz para mejorar el aislamiento acústico frente al ruido de impacto, ahorrando espacio y aportando además funciones complementarias como desacoplamiento e impermeabilización.

● TECHNICAL SHEETS

Impact noise reduction foil
G-Sound

The G-Sound family of sheets is designed to reduce impact sound by 15 to 20 dB, while acting as a moisture barrier due to its waterproofing properties and protecting the sheathing from structural movement due to its decoupling function.

Features that make G-Sound film different

Its reduced thickness and adhered installation eliminates the need for thick layers of mortar, achieving an installation with a total thickness of less than 1 cm, ideal for thin pavements. This combination makes it an optimal solution for both new construction and renovation projects.

100% waterproof

Decoupling

Reduces 15 dB

Minimum installation height

● FEATURES

G-SOUND is perfect for spaces where you want to reduce impact noise without losing installation height, in projects where you are looking for
acoustic comfort.

● TECHNICAL DOCUMENTS

Impact noise reduction foil
G-Sound Premium

Frequently Asked Questions

In this section we solve the most common queries about
technical specifications, performance and product compatibilities.
Our goal is to provide you with a clear and complete overview that facilitates
decision making and ensures a correct choice and implementation.

● FAQS

What is the G-SOUND impact noise reduction membrane?

G-SOUND is an anti-impact acoustic membrane designed to reduce the transmission of impact noise in floors covered with ceramic tiles. It is an effective solution for improving acoustic insulation against footsteps, knocks and vibrations.

What is an impact noise reduction membrane used for?

It is used to reduce noise transmitted through the floor by impacts such as footsteps, dragging furniture or knocks. This type of membrane helps improve the acoustic comfort of the home or built space.

How much noise can G-SOUND reduce?

G-SOUND is designed to reduce impact noise by between 15 dB and 21 dB, depending on the installation system and the solution used.

Where is G-SOUND installed?

G-SOUND is installed under ceramic coverings to improve acoustic insulation against impact noise. It can be used indoors and outdoors, also providing uncoupling and waterproof protection.

Is G-SOUND only used for acoustic insulation?

No. In addition to improving acoustic insulation against impact noise, G-SOUND also provides uncoupling and waterproof protection functions, making it a very complete technical solution.

Can G-SOUND be installed without creating a large build-up?

Yes. One of its advantages is that it reduces impact noise with a total installation thickness of less than 1 cm, avoiding thicker and heavier solutions.

What advantages does G-SOUND offer compared to thicker acoustic systems?

G-SOUND saves space, reduces the total thickness of the solution and avoids the need for a thick mortar layer. This makes installation easier and improves efficiency on site.

What is the G-SOUND acoustic membrane made of?

G-SOUND is made up of a polypropylene membrane with an integrated polypropylene geotextile on the underside and a non-woven fibre fleece on the upper side, forming a multilayer structure.

Is G-SOUND suitable for ceramic floors?

Yes. Its use is focused on improving acoustic insulation against impact sound transmitted by ceramic coverings, making it an especially suitable solution for this type of flooring.

Why choose G-SOUND to reduce footstep noise?

Because it is a lightweight, technical and effective solution for improving acoustic insulation against impact noise, saving space and also providing complementary functions such as uncoupling and waterproofing.

Technical information of
impact noise reduction film G-SOUND

● TECHNICAL

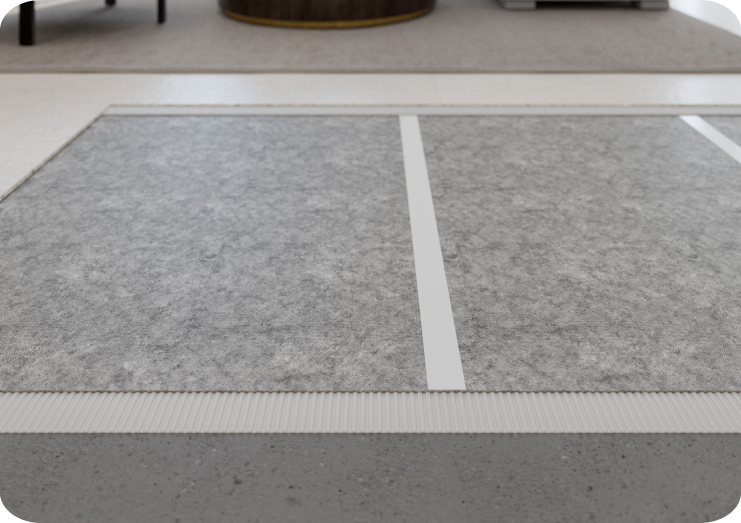

Multi-layer waterproof membrane designed to reduce the transmission of impact sound in floors with ceramic tiles. It is installed under the flooring as a decoupling layer, improving acoustic insulation and also providing decoupling, crack bridging and waterproof protection. It can be used both indoors and outdoors.

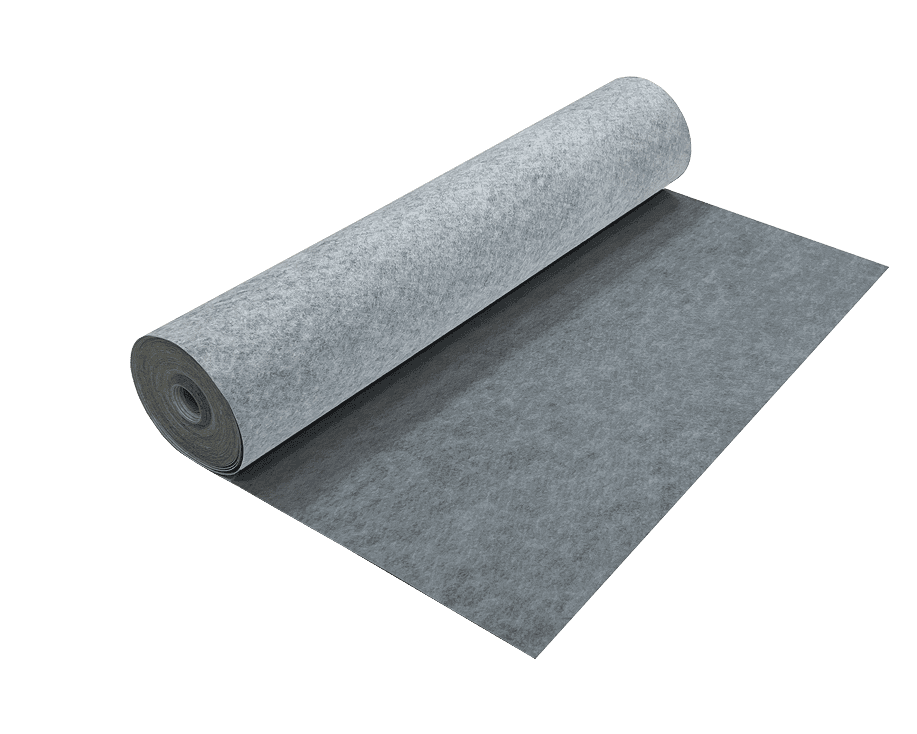

It consists of a waterproof polypropylene inner sheet, with an integrated polypropylene geotextile on the lower face and a non-woven fiber fleece on the upper face composed of PP/PES. It is 1.2 mm thick, gray in color and weighs 0.440 kg/m².
